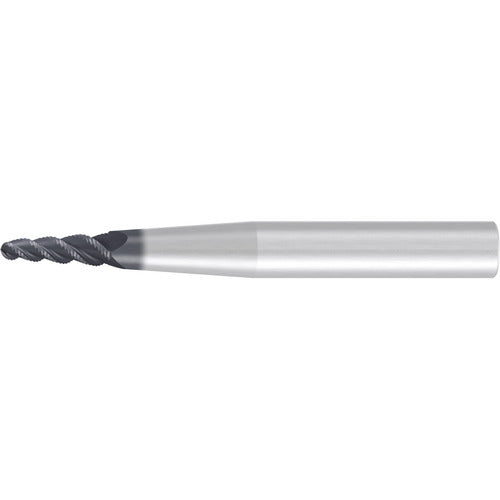

3546L.04030A BN TPR EM
Item #: ER453546L04030A
Brand: EMUGE-FRANKEN
Model #: 3546L.04030A
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10.6 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 35 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| End Shape | Taper Ball Nose |
| Corner Radius (RE) | 3 mm |
| Shank Type | HA |
| Overall Length (OAL) | 140 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Tool Type | Taper Ball 4° |
| Body Half Taper Angle (BHTA) | 4 Degrees |
| Series/List # | 3546L |
| Coating | AlCr |
