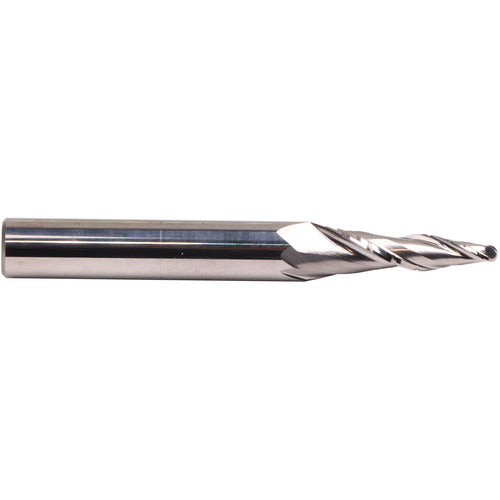

3447.06015B BN TPR EM
Item #: ER45344706015B
Brand: EMUGE-FRANKEN
Model #: 3447.06015B
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | Polished |
| Cutting Diameter (DC) | 5.33 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 25 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| End Shape | Taper Ball Nose |
| Corner Radius (RE) | 1.5 mm |
| Shank Type | HA |
| Overall Length (OAL) | 68 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Tool Type | Taper Ball 6° |
| Body Half Taper Angle (BHTA) | 6 Degrees |
| Series/List # | 3447 |
