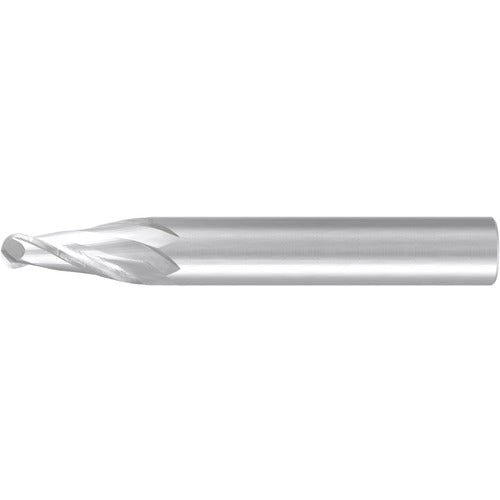

3447.04005A BN TPR EM
Item #: ER45344704005A
Brand: EMUGE-FRANKEN
Model #: 3447.04005A
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | Polished |
| Cutting Diameter (DC) | 2.33 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 20 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| End Shape | Taper Ball Nose |
| Corner Radius (RE) | 0.5 mm |
| Shank Type | HA |
| Overall Length (OAL) | 62 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Tool Type | Taper Ball 4° |
| Body Half Taper Angle (BHTA) | 4 Degrees |
| Series/List # | 3447 |
