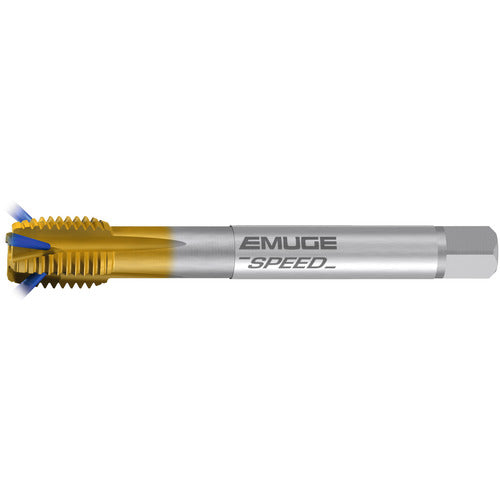

M16X1.5-REKORD B-Z-IKZN
Item #: ER453258F010359
Brand: EMUGE-FRANKEN
Model #: C3258F01.0359
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M16 × 1.5 |
| Tool Type | Rekord B-Speed |
| Thread Diameter Size (TDZ) | M16 |
| Applicable Material | Universal Materials |
| Thread Pitch (TP) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 100 mm |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSS-E PM |
| Series/List # | 3258F01 |
