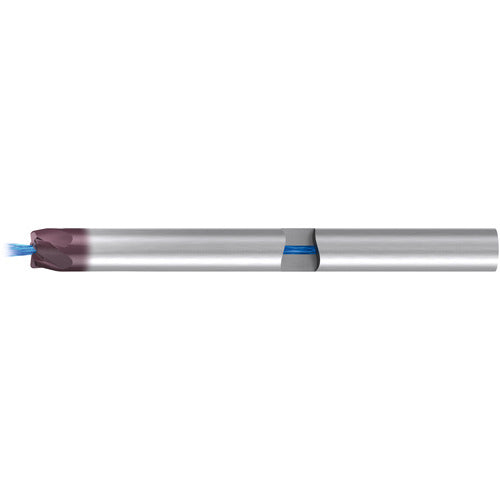

2678AZ.011010 TAPER EM
Item #: ER452678Z011010
Brand: EMUGE-FRANKEN
Model #: 2678AZ.011010
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 11 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| End Shape | TORUS |
| Flute Count (NOF) | 7 |
| Shank Type | HA |
| Corner Radius (RE) | 1 mm |
| Length Group | Long |
| Overall Length (OAL) | 108 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Tool Type | Taper Torus Long 8° |
| Body Half Taper Angle (BHTA) | 8 Degrees |
| Series/List # | 2678AZ |
| Coating | AlTiN |
