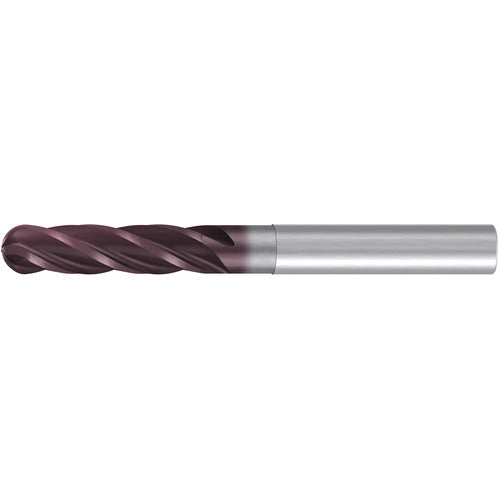

10MM EM TOP-CUT-BN-XL
Item #: ER452504A010
Brand: EMUGE-FRANKEN
Model #: 2504A.010
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Tool Type | Top-Cut |
| Overall Length (OAL) | 100 mm |
| Length Group | Extra Long |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 35 Degrees |
| Series/List # | 2504A |
| Shank Type | HA |
| Cutting Direction (HAND) | Right Hand |
