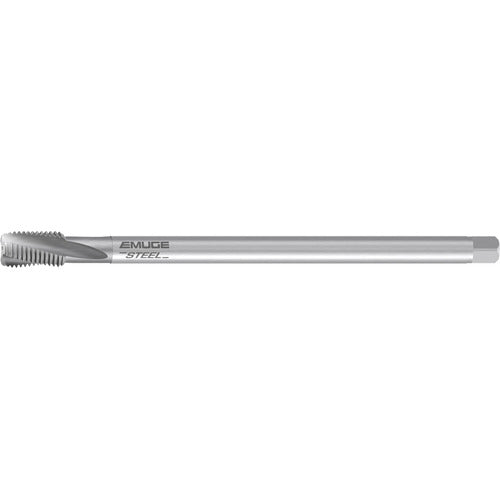

M14-TAP-REK D-STL/XLENGTH
Item #: ER4524610000114
Brand: EMUGE-FRANKEN
Model #: C2461000.0114
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M14 |
| Standard | DIN |
| Thread Pitch (TP) | 2 mm |
| Chamfer | 1.5P-2P |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 224 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel |
| Flute Type | Spiral |
| Cutting Edge Material | HSSE |
| Series/List # | 2461000 |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Size | M14 × 2 |
| Tool Type | Rekord D-Steel/E |
