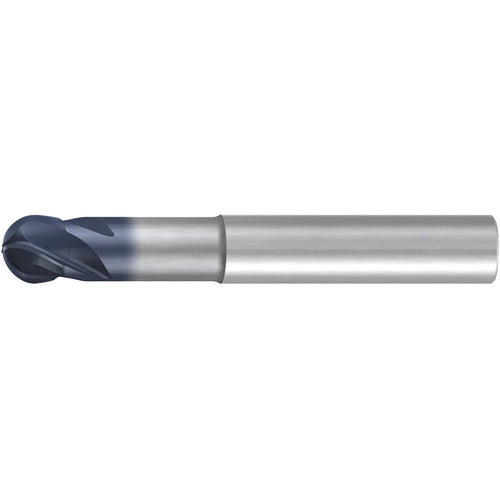

5M HM BALL SH 4FL TIALN
Item #: ER4520901
Brand: EMUGE-FRANKEN
Model #: 2834A.005
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5 mm |
| Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Tool Type | Hard-Cut |
| Overall Length (OAL) | 57 mm |
| Length Group | Stub |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 2834A |
| Shank Type | HA |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5 mm |
