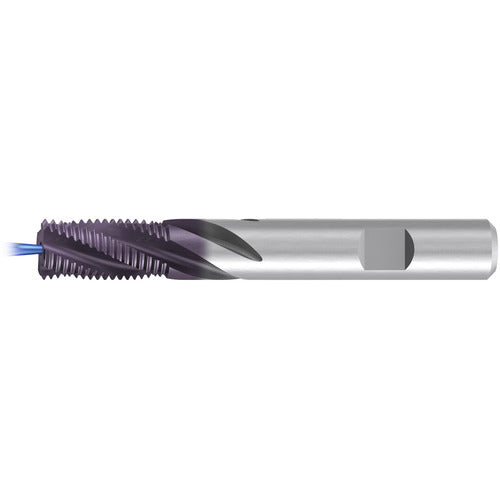

P 1.5 D10X20X80 GF 4SPFL TICN
Item #: ER4516628
Brand: EMUGE-FRANKEN
Model #: GF162316.9514
| Product Specifications | |
|---|---|
| Thread Size | M14 |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Thread Pitch (TP) | 1.5 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | >=M14 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 9.9 mm |
| Usable Length (LU) | 21.7 mm |
| Overall Length (OAL) | 80 mm |
| Series/List # | A214524 |
| Flute Count (NOF) | 4 |
| Length Group | Long |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
