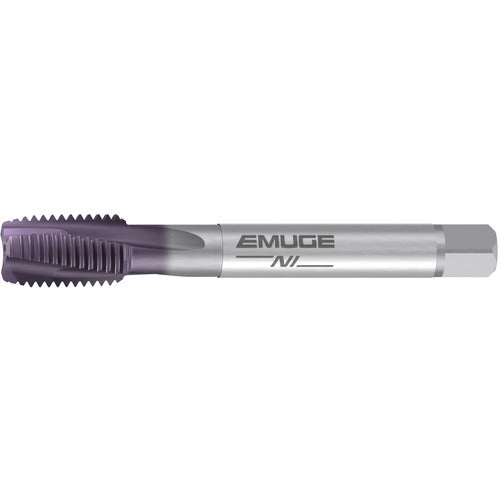

M 20-6HX REK.2DF-NI-TICN
Item #: ER4514787
Brand: EMUGE-FRANKEN
Model #: C438J401.0120
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSS-E PM |
| Thread Size | M20 × 2.5 |
| Standard | DIN |
| Thread Diameter Size (TDZ) | M20 |
| Tool Type | Rekord DF-NI |
| Thread Pitch (TP) | 2.5 mm |
| Applicable Material | Super-Alloys / Titanium |
| Thread Tolerance Class (TCTR) | 6HX |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Overall Length (OAL) | 140 mm |
| Flute Helix Angle (FHA) | 10 Degrees |
| Chamfer | 2P-3P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Series/List # | 438J401 |
