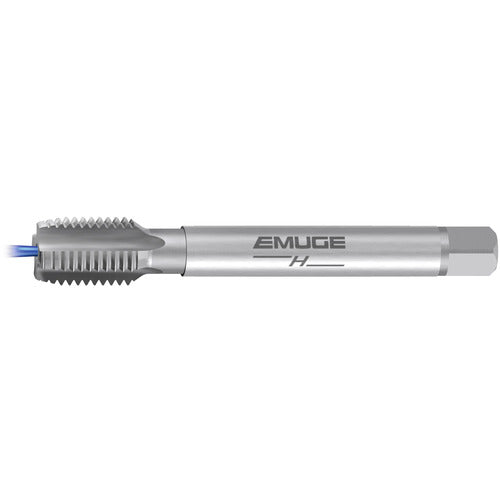

G 1/8-X IS0228 REK.2A-H/E IKZ
Item #: ER4514601
Brand: EMUGE-FRANKEN
Model #: C1960901.4035
| Product Specifications | |
|---|---|
| Thread Standard | BSP |
| Standard | DIN |
| Thread Size | 1/8″ - 28 |
| Tool Type | Rekord A-H/E |
| Thread Diameter Size (TDZ) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Threads per Inch (TPI) | 28 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 90 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 1.5P-2P |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | Bright |
| Series/List # | 1960901 |
| Cutting Edge Material | Carbide |
