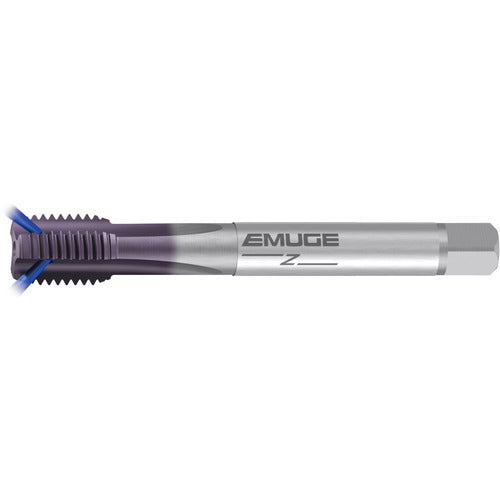

M 20-6HX REK.2A-Z-IKZN TICN
Item #: ER4514540
Brand: EMUGE-FRANKEN
Model #: C1069401.0120
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Standard | DIN |
| Thread Pitch (TP) | 2.5 mm |
| Tool Type | Rekord A-Z |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 140 mm |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Flute Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron |
| Series/List # | 1069401 |
| Cutting Edge Material | HSSE |
| Thread Size | M20 × 2.5 |
| Thread Tolerance Class (TCTR) | 6HX |
