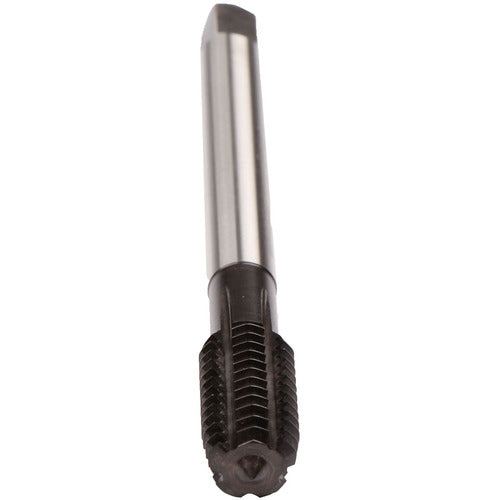

7/16-14 UNF 2B REK.2DRS-OLN
Item #: ER4513399
Brand: EMUGE-FRANKEN
Model #: CU921000.5012
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 14 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Roll Form - Druck |
| Overall Length (OAL) | 3.937″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Coating | NT |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Universal Materials |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
