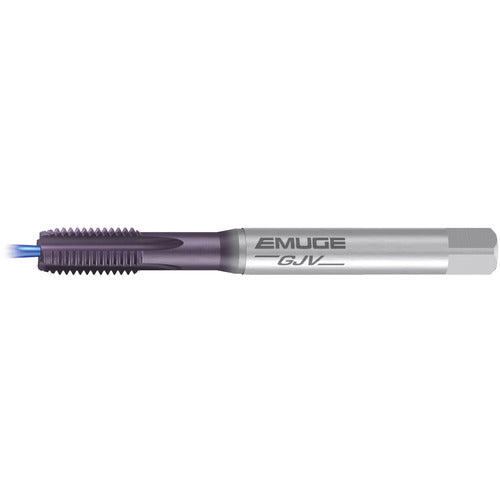

M 5-6HX REK.1A-GJV IKZ TICN
Item #: ER4512436
Brand: EMUGE-FRANKEN
Model #: B196R501.0050
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Standard | DIN |
| Thread Pitch (TP) | 0.8 mm |
| Tool Type | Rekord A-GJV |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 70 mm |
| Coating | TiCN |
| Usable Length (LU) | 25 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E-PM |
| Series/List # | 196R501 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M5 × 0.8 |
