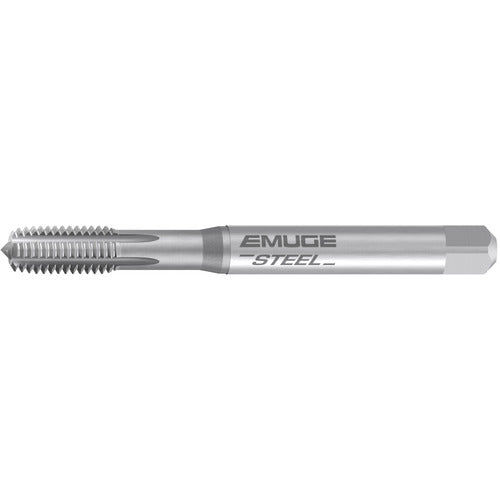

M 10-6HX REK.1DR-S-OLN
Item #: ER4512344
Brand: EMUGE-FRANKEN
Model #: B0921000.0100
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | M10 |
| Coating | NT |
| Thread Pitch (TP) | 1.5 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 100 mm |
| Chamfer | 2P-3P |
| Usable Length (LU) | 39 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN |
| Series/List # | 921000 |
| Thread Standard | Metric |
| Thread Size | M10 × 1.5 |
