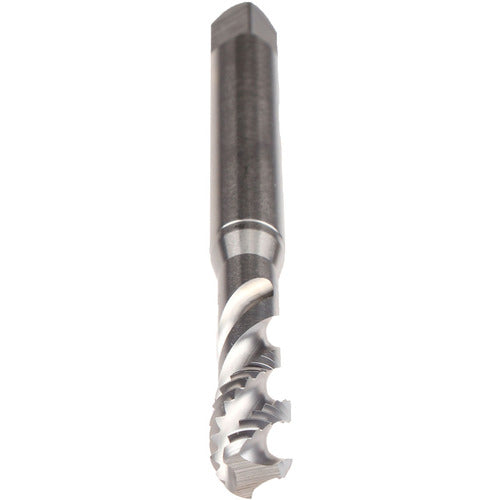

M 4-ISO2/6H 1ENORM-Z
Item #: ER4512193
Brand: EMUGE-FRANKEN
Model #: B0503500.0040
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H |
| Thread Pitch (TP) | 0.7 mm |
| Standard | DIN |
| Thread Standard | Metric |
| Tool Type | Enorm Z |
| Overall Length (OAL) | 63 mm |
| Chamfer | 2P-3P |
| Usable Length (LU) | 21 mm |
| Coating | Bright |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Metric |
