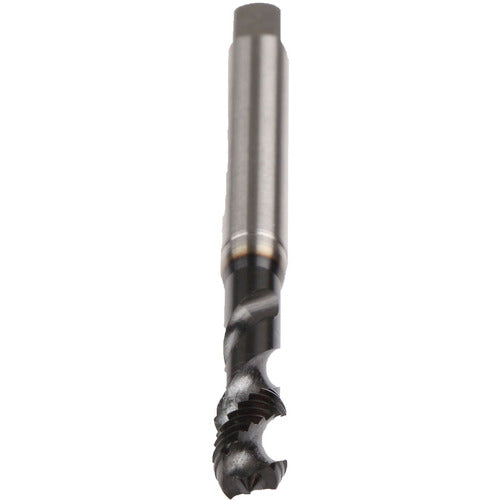

M 2-ISO 2/6H 1 ENORM AL GLT8
Item #: ER4512112
Brand: EMUGE-FRANKEN
Model #: B050S800.0020
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M2 |
| Cutting Edge Material | HSSE |
| Thread Pitch (TP) | 0.4 mm |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H |
| Thread Standard | Metric |
| Standard | DIN |
| Overall Length (OAL) | 45 mm |
| Tool Type | Enorm AL |
| Usable Length (LU) | 12 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Coating | GLT-8 |
| Flute Count (NOF) | 2 |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coolant Supply Property (CSP) | External |
