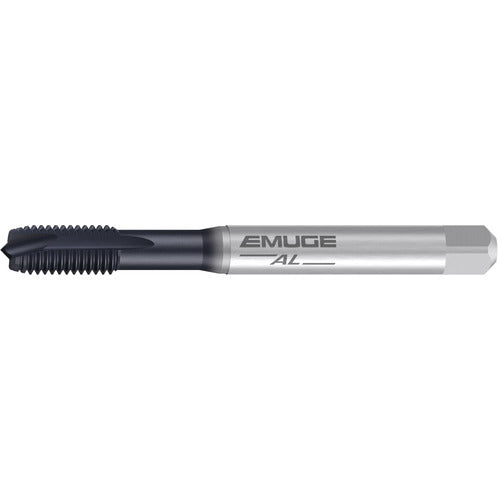

M 6-6H MOD REK.1B-AL-GLT8
Item #: ER4511883
Brand: EMUGE-FRANKEN
Model #: B020S800.0971
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN | ANSI |
| Thread Size | M6 × 1 |
| Tool Type | Rekord B-AL |
| Thread Diameter Size (TDZ) | M6 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Tolerance Class (TCTR) | 6H |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 90 mm |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | GLT-8 |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E |
| Series/List # | 020S800 |
