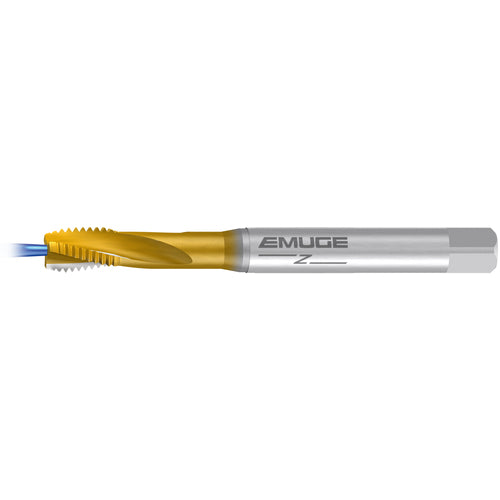

10-32 UNF 2BX REK.1D-Z-BF IKZ
Item #: ER4511569
Brand: EMUGE-FRANKEN
Model #: BU573701.5041
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Standard | DIN | ANSI |
| Thread Size | #10 - 32 |
| Tool Type | Rekord D-Z-BF |
| Thread Diameter Size (TDZ) | #10 |
| Applicable Material | Cast Iron |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 2.756″ |
| Style | Spiral Point |
| Chamfer | 2P-3P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 |
| Series/List # | U573701 |
| Cutting Edge Material | HSS-E |
