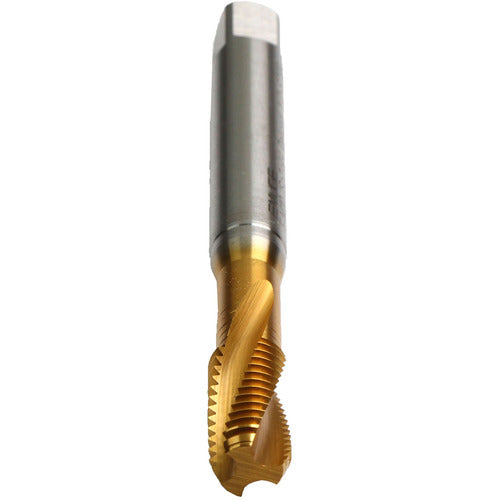

5-44 UNF 2B REK.1D TIN
Item #: ER4511276
Brand: EMUGE-FRANKEN
Model #: BU451400.5038
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #5 |
| Cutting Edge Material | HSSE |
| Threads per Inch (TPI) | 44 |
| Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | UNF |
| Standard | DIN | ANSI |
| Overall Length (OAL) | 2.205″ |
| Tool Type | Rekord D |
| Usable Length (LU) | 18 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Coating | TiN |
| Flute Count (NOF) | 2 |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
