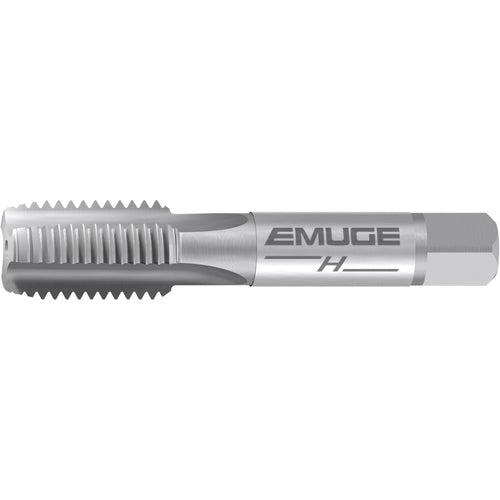

1/4-20 UNF 2B REK.A-H
Item #: ER4510005
Brand: EMUGE-FRANKEN
Model #: AU100501.5009
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Tool Type | Rekord A-H |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.5″ |
| Coating | NT |
| Usable Length (LU) | 29 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Cast Iron | Hard Materials |
| Series/List # | U100501 |
| Cutting Edge Material | HSSE |
| Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | 2BX |
