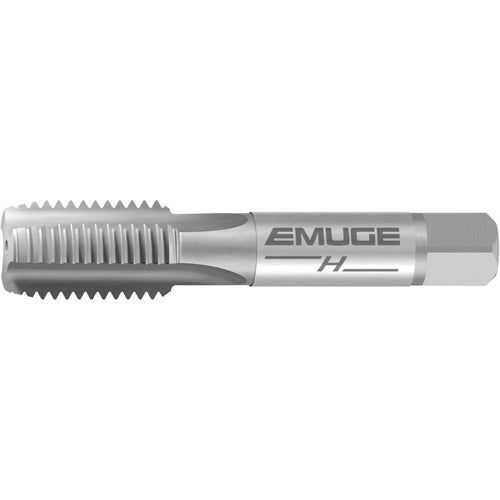

4-40 UNF 2B REK.A-H
Item #: ER4510000
Brand: EMUGE-FRANKEN
Model #: AU100501.5003
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #4 |
| Standard | ANSI |
| Threads per Inch (TPI) | 40 |
| Tool Type | Rekord A-H |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 1.874″ |
| Coating | NT |
| Usable Length (LU) | 18 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Wire Gauge |
| Applicable Material | Cast Iron | Hard Materials |
| Series/List # | U100501 |
| Cutting Edge Material | HSSE |
| Thread Size | #4 - 40 |
| Thread Tolerance Class (TCTR) | 2BX |
