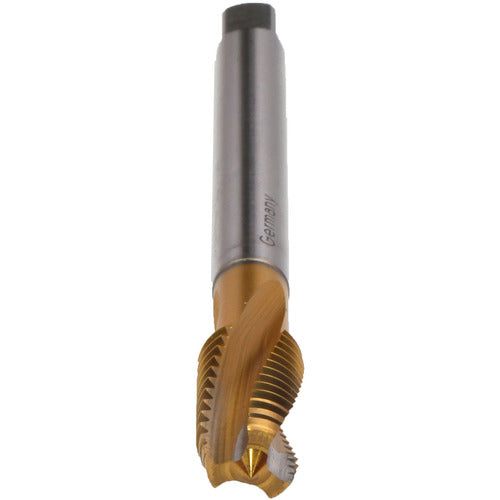

M20-TAP-REKORD DF-TIN
Item #: ER4504014000120
Brand: EMUGE-FRANKEN
Model #: C0401400.0120
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Standard | DIN |
| Thread Pitch (TP) | 2.5 mm |
| Tool Type | Rekord DF |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 140 mm |
| Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H |
| Series/List # | 401400 |
