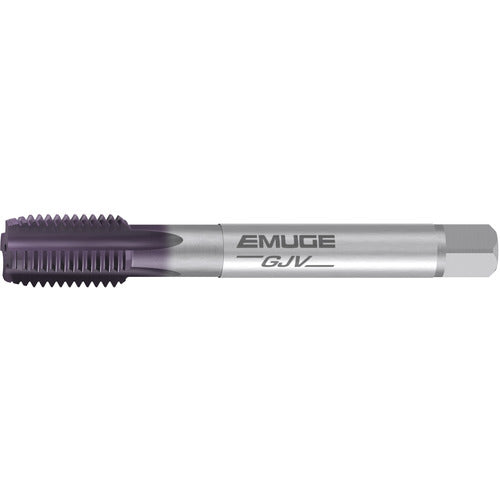

M16X2-TAP-GJV-TICN
Item #: ER45010R5010116
Brand: EMUGE-FRANKEN
Model #: C010R501.0116
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2 mm |
| Standard | DIN |
| Thread Standard | Metric |
| Tool Type | Rekord A-GJV |
| Overall Length (OAL) | 110 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Coating | TiCN |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Type | Straight |
| Applicable Material | Cast Iron |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS-E-PM |
| Coolant Supply Property (CSP) | External |
