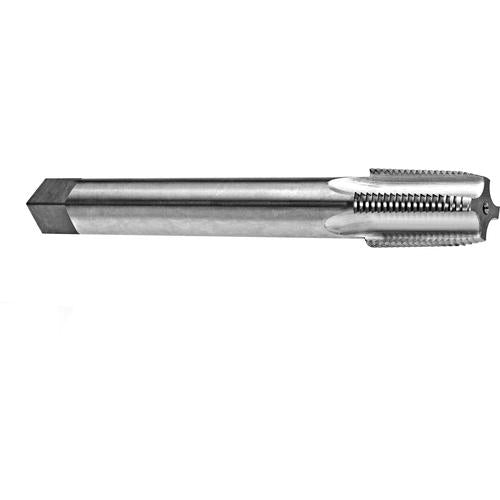

1/16-27 NPT 4FL 1-N TREAT 6″O/A EXT 0-2 DEG NEG RAKE GRD THD CI TAPER PIPE TAPS
Item #: EP40CI46314
Brand: Reiff & Nestor
Model #: CI46314
| Product Specifications | |
|---|---|
| Tool Type | Pipe Tap |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/16″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 27 |
| Coating | 1-N Treat |
| Thread Standard | NPT |
| Cutting Edge Material | HSS |
| Usable Length (LU) | 11/16″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Overall Length (OAL) | 6″ |
| Flute Length | 11/16″ |
| Thread Cutting Part Length (THL) | 11/16″ |
| Square Size | 0.328″ × 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.234″ |
| Thread Size | 1/16″ - 27 |
| Flute Type | Straight |
