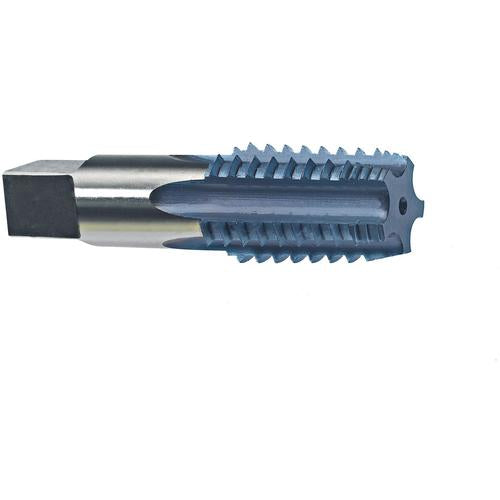

1/2-14 NPT 5FL BLUE DIAMOND TREAT INT GRD THD TAPER PIPE TAPS (46624) W113
Item #: EP4099775
Brand: Reiff & Nestor
Model #: 99775
| Product Specifications | |
|---|---|
| Tool Type | Pipe Tap |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/2″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 14 |
| Coating | Blue Diamond |
| Thread Standard | NPT |
| Cutting Edge Material | HSS |
| Usable Length (LU) | 1-3/8″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Overall Length (OAL) | 3-1/8″ |
| Flute Length | 1-3/8″ |
| Thread Cutting Part Length (THL) | 1-3/8″ |
| Square Size | 0.515″ × 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.515″ |
| Thread Size | 1/2″ - 14 |
| Flute Type | Straight |
