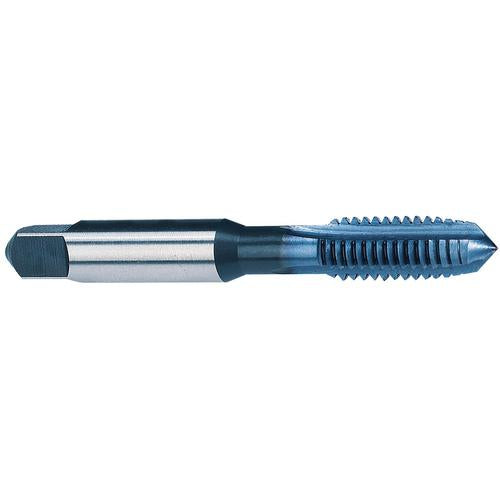

M8X1.25 3FL D-5 BLUE DIAMOND TREAT CNC DESIGN SPPT PLUG METRIC TAPS 402VM (86252) W106
Item #: EP4099563
Brand: Reiff & Nestor
Model #: 99563
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Thread Size | M8 × 1.25 |
| Drive Size (DRVS) | 0.238″ |
| Thread Diameter Size (TDZ) | M8 |
| Flute Length | 1-1/8″ |
| Thread Pitch (TP) | 1.25 mm |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | D5 |
| End Shape | Spiral Point |
| Usable Length (LU) | 1-1/8″ |
| Style | Plug |
| Overall Length (OAL) | 2-23/32″ |
| Shank Type | Round |
| Coating | Blue Diamond |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 0.238″ × 3/8″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Tool Type | Tap |
| Series/List # | 402VM |
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Grade | HSS |
