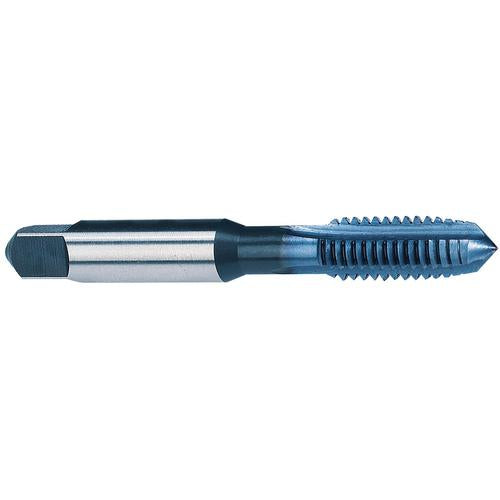

M3.5X0.6 3FL D-4 BLUE DIAMOND TREAT CNC DESIGN SPPT PLUG METRIC TAPS 402VM (86212) W103
Item #: EP4099559
Brand: Reiff & Nestor
Model #: 99559
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Thread Cutting Part Length (THL) | 11/16″ |
| Thread Size | M3.5 × 0.6 |
| Drive Size (DRVS) | 0.11″ |
| Thread Diameter Size (TDZ) | M3.5 |
| Flute Length | 11/16″ |
| Thread Pitch (TP) | 0.6 mm |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | D4 |
| End Shape | Spiral Point |
| Usable Length (LU) | 11/16″ |
| Style | Plug |
| Overall Length (OAL) | 2″ |
| Shank Type | Round |
| Coating | Blue Diamond |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 0.110″ × 3/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Tool Type | Tap |
| Series/List # | 402VM |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Grade | HSS |
