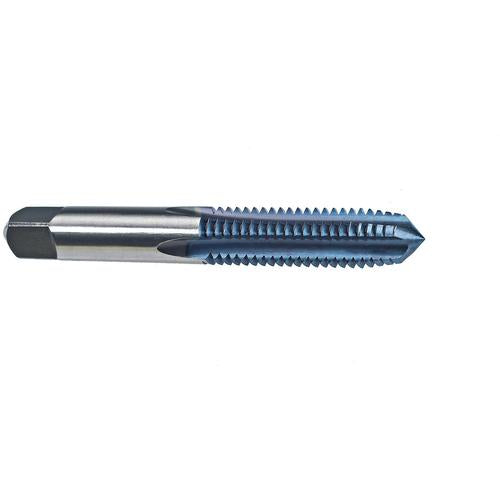

3/8-16 4FL H-3 PENTA BLUE BOTTOM TAPS (PR25333) Y27
Item #: EP4099071
Brand: Reiff & Nestor
Model #: 99071
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 16 |
| Chamfer | Bottom |
| Thread Standard | NC |
| Coating | Blue Diamond |
| Overall Length (OAL) | 2-15/16″ |
| Drive Size (DRVS) | 0.286″ |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Flute Type | Straight Flute |
| Connection Diameter Machine Side (DCONMS) | 0.286″ |
| End Shape | Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 1-1/4″ × 0.286″ |
| Cutting Edge Material | HSS |
| Standard Pack Size | 12 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Size | 3/8″ - 16 |
