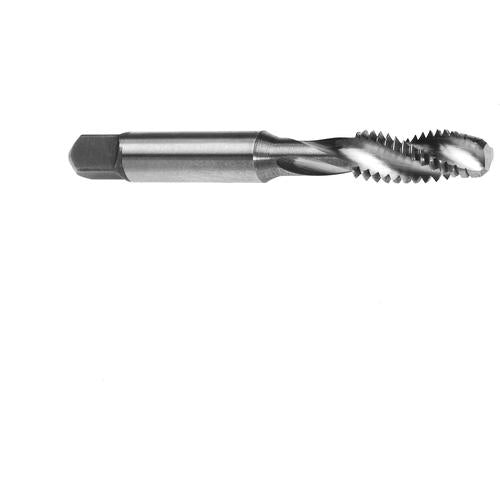

5/16-18 3FL H-5 SLOW SPFL PENTA RELIEF CNC DESIGN MODIFIED BOTTOM TAPS 407VPR
Item #: EP4086750
Brand: Reiff & Nestor
Model #: 86750
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Tool Type | Tap |
| Threads per Inch (TPI) | 18 |
| Chamfer | Modified Bottom |
| Overall Length (OAL) | 2-23/32″ |
| Coating | Bright |
| Usable Length (LU) | 1-1/8″ |
| Flute Length | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.238″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Square Size | 0.238″ × 3/8″ |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H5 |
