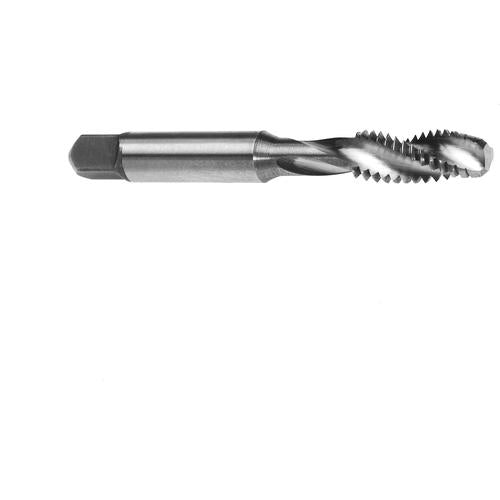

10-32 3FL H-3 SLOW SPFL PENTA BLUE CNC DESIGN MODIFIED BOTTOM TAPS 407VPR (86722) TD8
Item #: EP4086724
Brand: Reiff & Nestor
Model #: 86724
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 |
| Tool Type | Tap |
| Overall Length (OAL) | 2-3/8″ |
| Chamfer | Modified Bottom |
| Thread Cutting Part Length (THL) | 7/8″ |
| Coating | Blue Diamond |
| Usable Length (LU) | 7/8″ |
| Flute Length | 7/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.152″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Square Size | 0.152″ × 1/4″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
