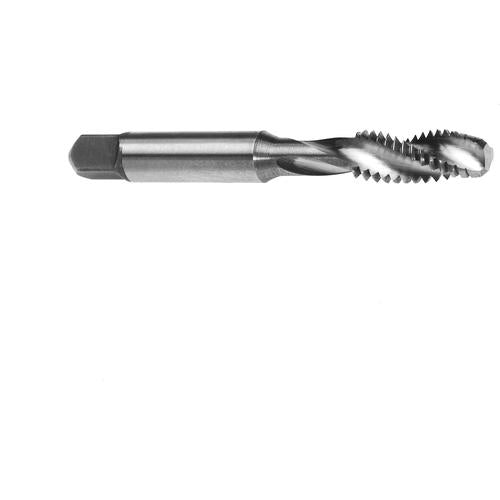

M3.5X0.6 3FL D-4 SLOW SPFL PENTA BLUE CNC DESIGN BOTTOM METRIC TAPS 407VMPR (86613) TD10
Item #: EP4086615
Brand: Reiff & Nestor
Model #: 86615
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3.5 |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.6 mm |
| Tool Type | Tap |
| Overall Length (OAL) | 2″ |
| Chamfer | Bottom |
| Thread Cutting Part Length (THL) | 11/16″ |
| Coating | Blue Diamond |
| Usable Length (LU) | 11/16″ |
| Flute Length | 11/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Square Size | 0.11″ × 3/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
