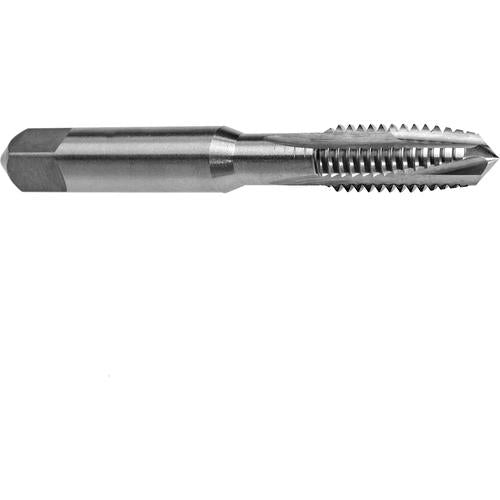

M3X0.5 2FL D-3 PENTA BLUE CNC DESIGN SPPT PLUG METRIC TAPS 402VMPR (86203) TD3
Item #: EP4086205
Brand: Reiff & Nestor
Model #: 86205
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Thread Size | M3 × 0.5 |
| Thread Cutting Part Length (THL) | 5/16″ |
| Thread Diameter Size (TDZ) | M3 |
| Drive Size (DRVS) | 0.11″ |
| Thread Pitch (TP) | 0.5 mm |
| Flute Length | 5/16″ |
| Thread Tolerance Class (TCTR) | D3 |
| Flute Type | Straight |
| Usable Length (LU) | 5/16″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Coating | Blue Diamond |
| Shank Type | Round |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS |
| Series/List # | 402VMPR |
| Tool Type | Tap |
| Grade | HSS |
