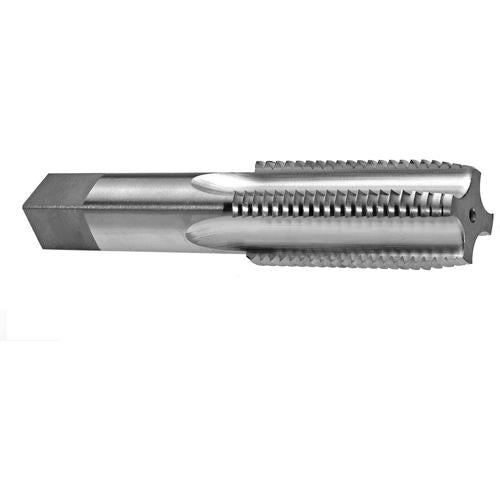

M18X2.5 4FL D-4 STI BOTTOM METRIC TAPS 130M
Item #: EP4073943
Brand: Reiff & Nestor
Model #: 73943
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | Bright |
| Thread Diameter Size (TDZ) | M18 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D4 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric STI |
| Thread Pitch (TP) | 2.5 mm |
| Thread Cutting Part Length (THL) | 2″ |
| Flute Length | 2″ |
| Overall Length (OAL) | 4-15/32″ |
| Flute Type | Straight Flute |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.652″ × 11/16″ |
| End Shape | Chamfer |
| Series/List # | 130M |
| Flute Count (NOF) | 4 |
| Thread Size | M18 × 2.5 |
| Chamfer | Bottom |
