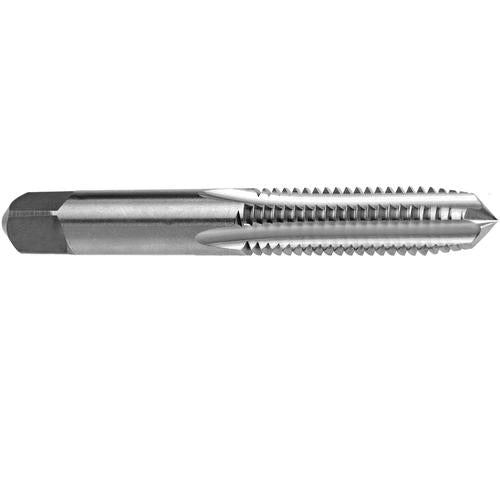

M12X1.75 4FL D-5 STI BOTTOM METRIC TAPS 130M
Item #: EP4073453
Brand: Reiff & Nestor
Model #: 73453
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | Bright |
| Thread Diameter Size (TDZ) | M12 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D5 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric STI |
| Thread Pitch (TP) | 1.75 mm |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Flute Length | 1-21/32″ |
| Overall Length (OAL) | 3-19/32″ |
| Flute Type | Straight Flute |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.360″ × 9/16″ |
| End Shape | Chamfer |
| Series/List # | 130M |
| Flute Count (NOF) | 4 |
| Thread Size | M12 × 1.75 |
| Chamfer | Bottom |
