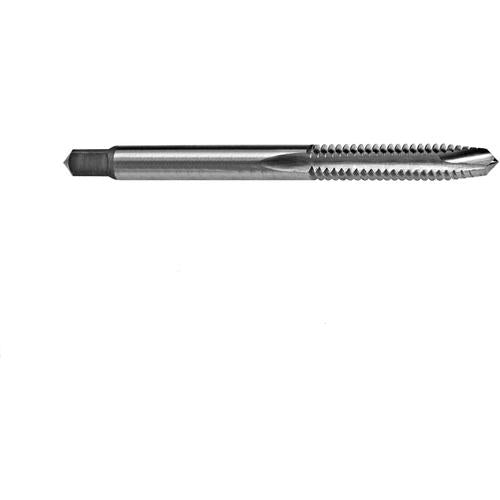

M6X1.0 2FL D-3 STI SPPT PLUG METRIC TAPS 131M
Item #: EP4072637
Brand: Reiff & Nestor
Model #: 72637
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | Bright |
| Thread Diameter Size (TDZ) | M6 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D3 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric STI |
| Thread Pitch (TP) | 1 mm |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Flute Length | 1-1/8″ |
| Overall Length (OAL) | 2-23/32″ |
| Flute Type | Straight Flute |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.238″ × 3/8″ |
| Flute Count (NOF) | 2 |
| Series/List # | 131M |
| Chamfer | Plug |
| Thread Size | M6 × 1 |
