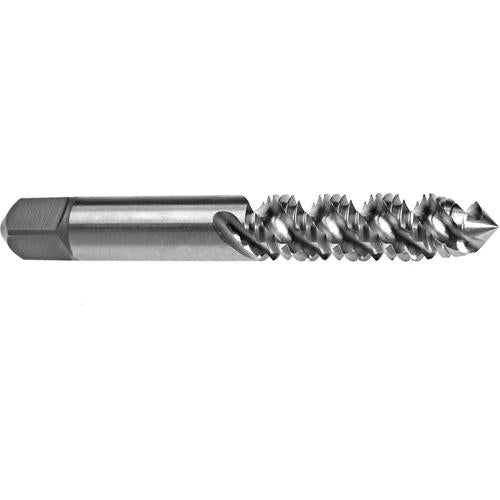

M4X0.7 3FL D-2 STI FAST SPFL PLUG METRIC TAPS 136M
Item #: EP4072428
Brand: Reiff & Nestor
Model #: 72428
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | Bright |
| Thread Diameter Size (TDZ) | M4 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D2 |
| Flute Helix Angle (FHA) | 52 Degrees |
| Thread Standard | Metric STI |
| Thread Pitch (TP) | 0.7 mm |
| Thread Cutting Part Length (THL) | 7/8″ |
| Flute Length | 7/8″ |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Spiral Flute |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.165″ × 9/32″ |
| End Shape | Chamfer |
| Series/List # | 136M |
| Flute Count (NOF) | 3 |
| Thread Size | M4 × 0.7 |
| Chamfer | Plug |
