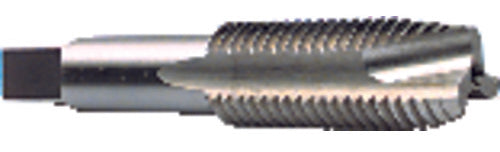

M2.5X0.45 2FL D-1 STI SPPT PLUG METRIC TAPS 131M
Item #: EP4072117
Brand: Reiff & Nestor
Model #: 72117
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | Bright |
| Style | Plug |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | M2.5 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | D1 |
| Thread Pitch (TP) | 0.45 mm |
| Thread Standard | Metric STI |
| Flute Length | 5/8″ |
| Thread Cutting Part Length (THL) | 5/8″ |
| Flute Type | Straight Flute |
| Overall Length (OAL) | 1-15/16″ |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.110″ × 3/16″ |
| End Shape | Spiral Point |
| Series/List # | 131M |
| Flute Count (NOF) | 2 |
| Thread Size | M2.5 × 0.45 |
| Chamfer | Plug |
