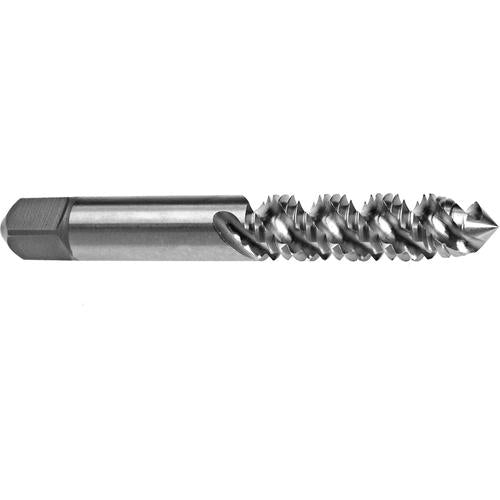

3-48 2FL H-2 HD SPFL BOTTOM TAPS 101HD
Item #: EP4064004
Brand: Reiff & Nestor
Model #: 64004
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #3 |
| Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 48 |
| Tool Type | Tap |
| Overall Length (OAL) | 1-13/16″ |
| Chamfer | Bottom |
| Thread Cutting Part Length (THL) | 1/2″ |
| Coating | Bright |
| Usable Length (LU) | 1/2″ |
| Flute Length | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.11″ × 3/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
