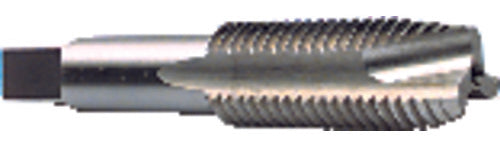

4-40 2FL H-2 STI SPPT PLUG TAPS 131
Item #: EP4056022
Brand: Reiff & Nestor
Model #: 56022
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | Plug |
| Style | Plug |
| Coating | Bright |
| Thread Diameter Size (TDZ) | #4 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H2 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | STI |
| Flute Length | 11/16″ |
| Thread Cutting Part Length (THL) | 11/16″ |
| Flute Type | Straight Flute |
| Threads per Inch (TPI) | 40 |
| Measurement Type | Wire Gage |
| Overall Length (OAL) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 0.110″ × 3/16″ |
| Cutting Edge Material | HSS |
| Series/List # | 131 |
| End Shape | Spiral Point |
| Remarks | •STI Spiral Point Taps |
| Flute Count (NOF) | 2 |
| Thread Size | #4 - 40 |
