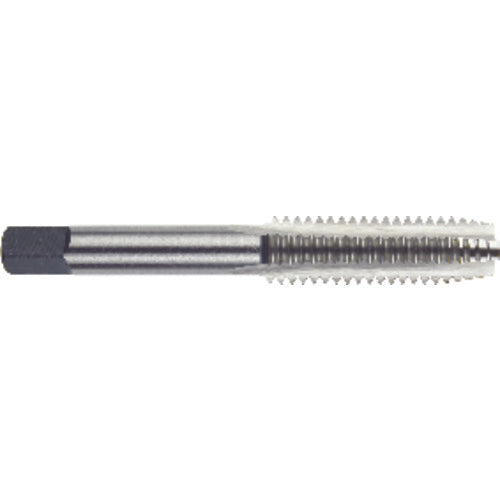

7/16-14 4FL H-3 STI BOTTOM TAPS 130
Item #: EP4055433
Brand: Reiff & Nestor
Model #: 55433
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | Bottom |
| Style | Bottoming |
| Coating | Bright |
| Thread Diameter Size (TDZ) | 7/16″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | STI |
| Flute Length | 1-21/32″ |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Flute Type | Straight Flute |
| Threads per Inch (TPI) | 14 |
| Measurement Type | Fractional |
| Overall Length (OAL) | 3-19/32″ |
| Connection Diameter Machine Side (DCONMS) | 0.322″ × 1/2″ |
| Cutting Edge Material | HSS |
| Series/List # | 130 |
| End Shape | Chamfer |
| Remarks | •STI (Screw Thread Insert) Taps •High Speed Steel Straight Flute Taps |
| Flute Count (NOF) | 4 |
| Thread Size | 7/16″ - 14 |
