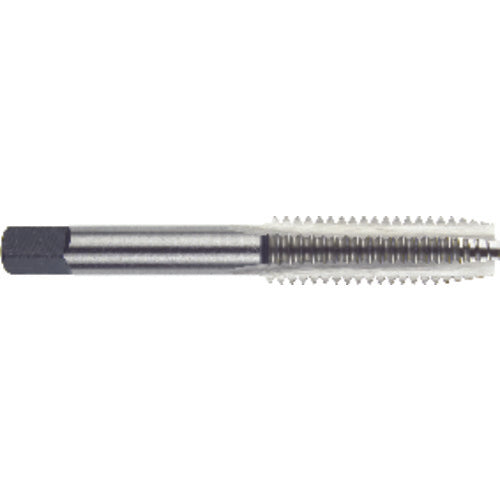

6-32 3FL H-2 STI BOTTOM TAPS 130
Item #: EP4054223
Brand: Reiff & Nestor
Model #: 54223
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | Bottom |
| Style | Bottoming |
| Coating | Bright |
| Thread Diameter Size (TDZ) | #6 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H2 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | STI |
| Flute Length | 7/8″ |
| Thread Cutting Part Length (THL) | 7/8″ |
| Flute Type | Straight Flute |
| Threads per Inch (TPI) | 32 |
| Measurement Type | Wire Gage |
| Overall Length (OAL) | 2-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.152″ × 1/4″ |
| Cutting Edge Material | HSS |
| Series/List # | 130 |
| End Shape | Chamfer |
| Remarks | •STI (Screw Thread Insert) Taps •High Speed Steel Straight Flute Taps |
| Flute Count (NOF) | 3 |
| Thread Size | #6 - 32 |
