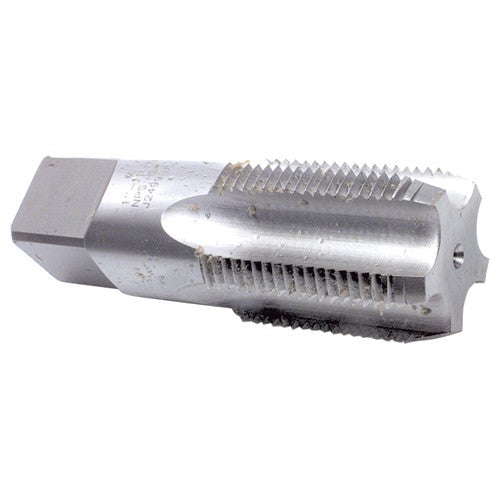

1/8-28 BSPT(Rc 1/8) 4FL GRD THD FULL FORM BRITISH TAPER PIPE TAPS 123
Item #: EP4047070
Brand: Reiff & Nestor
Model #: 47070
| Product Specifications | |
|---|---|
| Tool Type | Pipe Tap |
| Chamfer | Plug |
| Thread Diameter Size (TDZ) | 1/8″ |
| Coating | Bright |
| Threads per Inch (TPI) | 28 |
| Cutting Edge Material | HSS |
| Thread Standard | BSPT |
| Shank Type | Round w/ Drive Square |
| Usable Length (LU) | 3/4″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Flute Length | 3/4″ |
| Overall Length (OAL) | 2-1/8″ |
| Special Feature | British Taper Pipe 55º Whitworth Thread |
| Thread Cutting Part Length (THL) | 3/4″ |
| Square Size | 0.328″ × 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.328″ |
| Series/List # | 123 |
| Flute Type | Straight |
| Thread Size | 1/8″ - 28 |
| Cutting Direction (HAND) | Right Hand |
