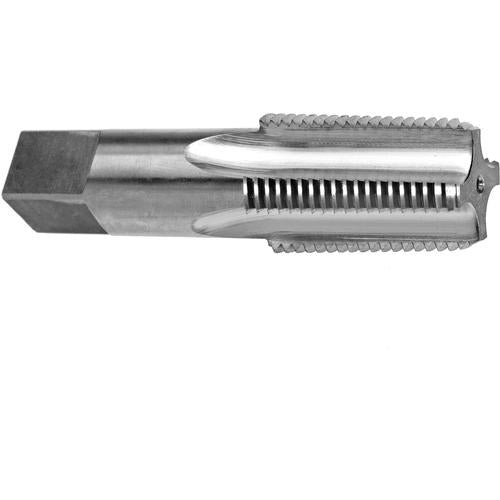

1 1/2-11 1/2 NPT 7FL INT #O TREAT ECONOMY THD TAPER PIPE TAPS 114C
Item #: EP4046540
Brand: Reiff & Nestor
Model #: 46540
| Product Specifications | |
|---|---|
| Tool Type | Pipe Tap |
| Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1-1/2″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 11.5 |
| Coating | #O Treat |
| Thread Standard | NPT |
| Cutting Edge Material | HSS |
| Usable Length (LU) | 1-3/4″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 7 |
| Measurement Type | Inch |
| Overall Length (OAL) | 4-1/4″ |
| Flute Length | 1-3/4″ |
| Thread Cutting Part Length (THL) | 1-3/4″ |
| Square Size | 1.125″ × 1″ |
| Connection Diameter Machine Side (DCONMS) | 1.125″ |
| Series/List # | 114C |
| Flute Type | Straight |
| Thread Size | 1-1/2″ - 11.5 |
