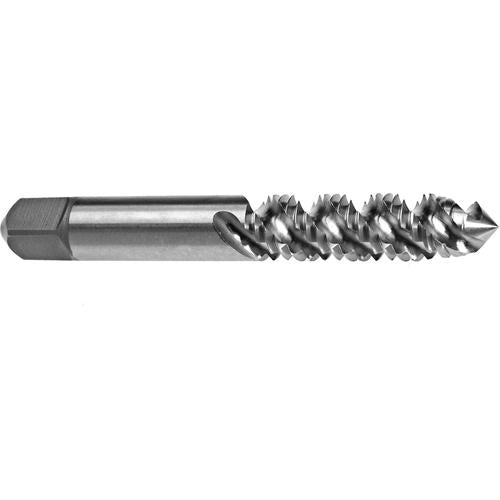

4-40 2FL H-1 FAST SPFL BOTTOM TAPS 101F
Item #: EP4020113
Brand: Reiff & Nestor
Model #: 20113
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #4 |
| Thread Tolerance Class (TCTR) | H1 |
| Threads per Inch (TPI) | 40 |
| Tool Type | Tap |
| Overall Length (OAL) | 1-7/8″ |
| Chamfer | Bottom |
| Thread Cutting Part Length (THL) | 9/16″ |
| Coating | Bright |
| Usable Length (LU) | 9/16″ |
| Flute Length | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Flute Type | Spiral Flute |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 52 Degrees |
| Square Size | 0.11″ × 3/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
