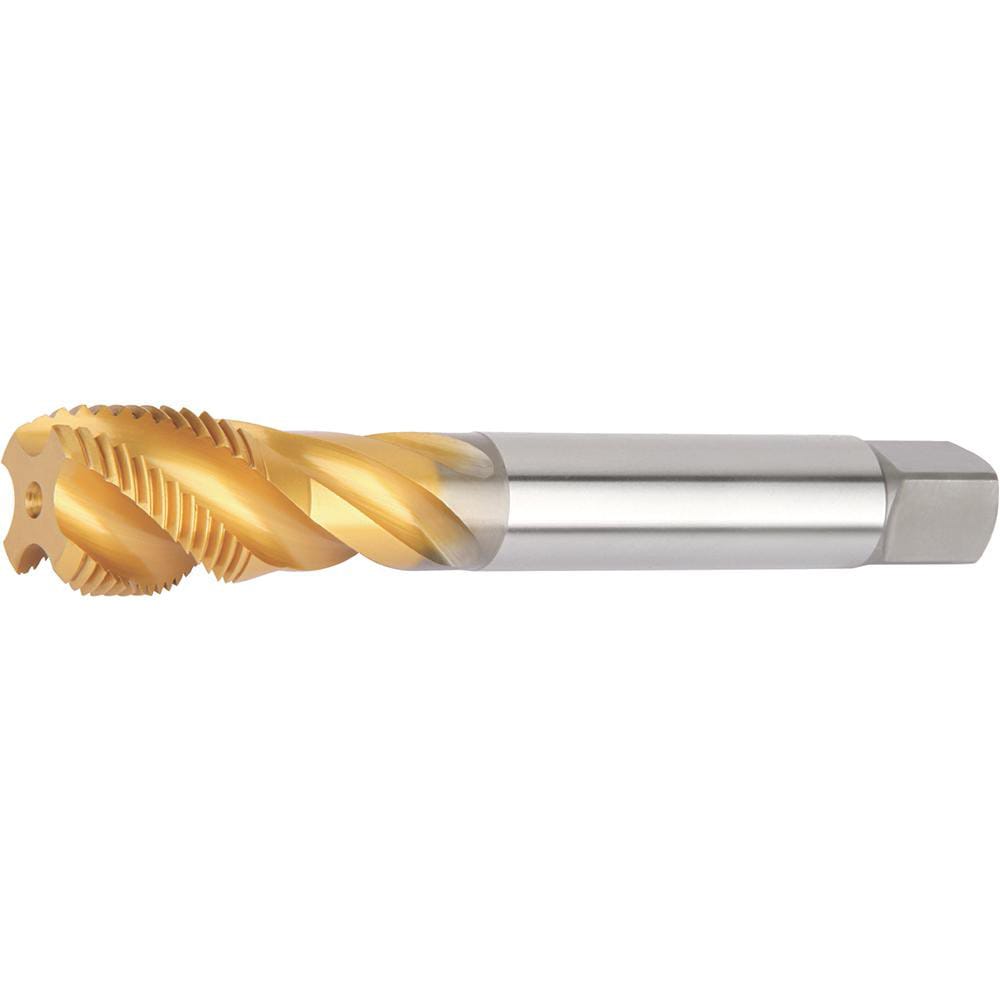

Brand: Widia / Part #: 6058874
Item #: 83166967
Brand: Widia
Model #: 6058874
Product Specifications
| Thread Size (Inch) | 3/4-14 |
| Overall Length (Decimal Inch) | 5.5100 |
| Chamfer | Semi-Bottoming |
| Thread Standard | BSPP |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Flute Direction | Right Hand |
| Helix Angle | 42 |
| Material | Solid Carbide |
| Thread Length (Decimal Inch) | 0.7900 |
| Thread Depth (Decimal Inch) | 2.5600 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Square Length (Decimal Inch) | 0.7500 |
| Square Size (Decimal Inch) | 0.6000 |
| Projection (Decimal Inch) | 2.5600 |
| Application | Tapping |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 14.0 |
| Coating/Finish | Black Oxide |
| Number Of Flutes | 4 |
