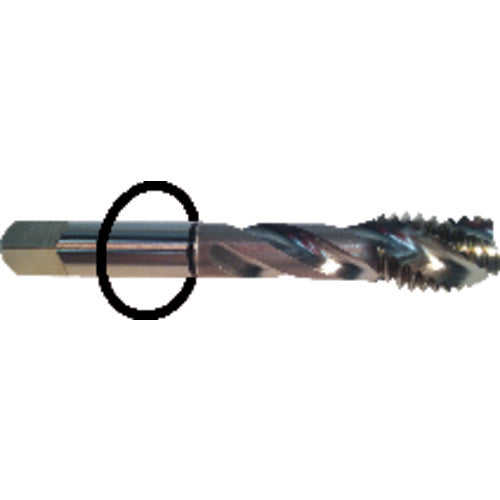

5-40 Dia-H2-3 FL-Std Spiral FL Tap - Black Ring
Item #: EK30BLRB1000540
Brand: Rapidkut
Model #: EK30BLRB1000540
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #5 |
| Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 40 |
| Special Feature | Multi-Purpose - Black Band |
| Thread Standard | NC |
| Tool Type | High Performance Tap |
| Overall Length (OAL) | 1-15/16″ |
| Coating | HSS-EX |
| Thread Cutting Part Length (THL) | 0.236″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Multi-Purpose |
| Measurement Type | Machine Screw |
| Cutting Edge Material | HSS |
