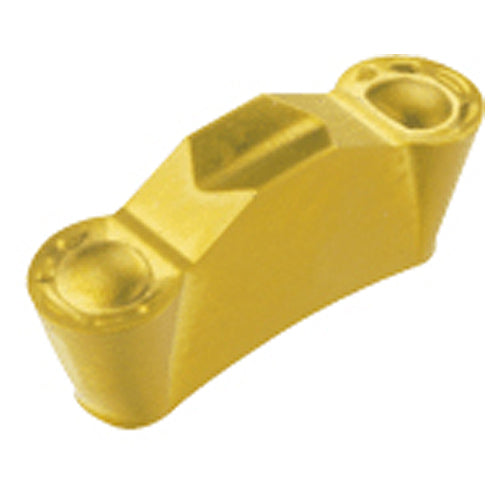

TGMF 525 IC830
Item #: EH6450135
Brand: Iscar
Model #: 6450135
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.197″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.098″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.563″ |
| Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Length (INSL) | 0.699″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 0.807″ |
| Cutting Position | External |
| Feed | 0.0165 inch/rev |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC830 |
| Body Material | Carbide |
