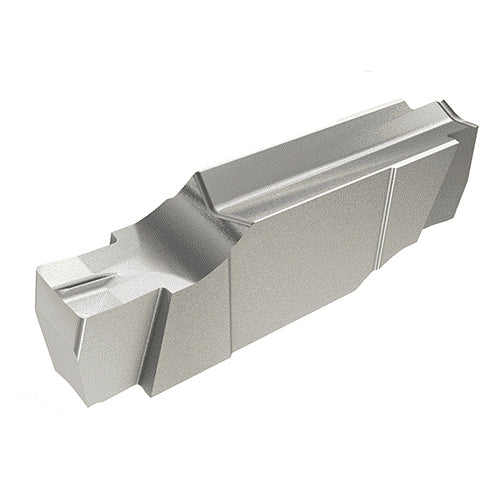

GIPI 1.57-0.15 IC806
Item #: EH643363748
Brand: Iscar
Model #: 3363748
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.062″ |
| Application | | Groove Turn & Parting Inserts | Int. Grooving (side limit) | |
| Corner Radius (RE) | 0.0059″ |
| Applicable Material | | Hi Temp Alloys | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Overall Length (OAL) | 0.618″ |
| Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Length (INSL) | 0.618″ |
| Chip Breaker Type | P |
| Cutting Depth Maximum (CDX) | 0.098″ |
| Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide |
| Minimum Bore Diameter (DMIN) | 1.181″ |
| Coating | AlTiN "SUMO TEC" |
| Measurement Type | Inch |
| Grade | IC806 |
| Body Material | Carbide |
