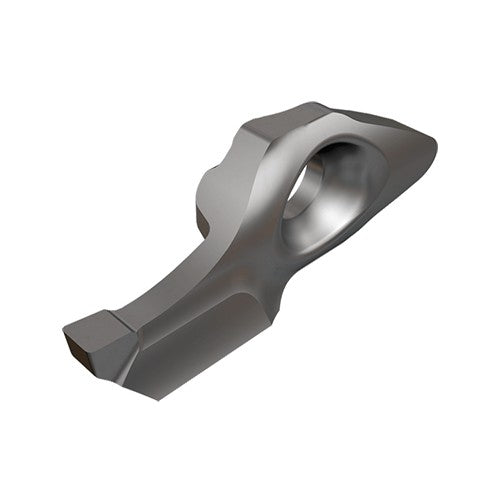

MEFL 10-2.50-1.25 IC908
Item #: EH643337039
Brand: Iscar
Model #: 3337039
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.098″ |
| Functional Width (WF) | 0.124″ |
| Insert Length (INSL) | 0.965″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 1.77″ |
| Corner Radius (RE) | 0.0492″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.39″ |
| Cutting Depth Maximum (CDX) | 0.354″ |
| Max. Face Grooving Feed (ffg(max)) | 0.0024 ″/rev |
| Insert Thickness Total (S1) | 0.299″ |
| Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Face Turning Feed (fft(min)) | 0.0008 ″/rev |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Inch |
| Grade | IC908 |
| Coating | TiAlN |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Groove Turn & Parting Inserts | |
| Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts |
